Manufacturing services
Surface mount, through-hole and mixed technology assembly, with a full turnkey service from design and PCBA through to box build and shipping to your end customer.
per hour
Capability
Ten machines, two lines, zero bottlenecks.
Arista runs 10 Siemens Siplace surface mount placement machines arranged in two lines, giving resilience, flexibility and maintenance without disruption to production.
Together the lines place up to 160,000 components per hour, so volume production is never an issue. They handle component types including 0402, QFP, QFN, micro BGA and fine-pitch parts.
The process
How your boards are built.
Every stage is controlled, inspected and recorded under our ISO 9001:2015 quality system.

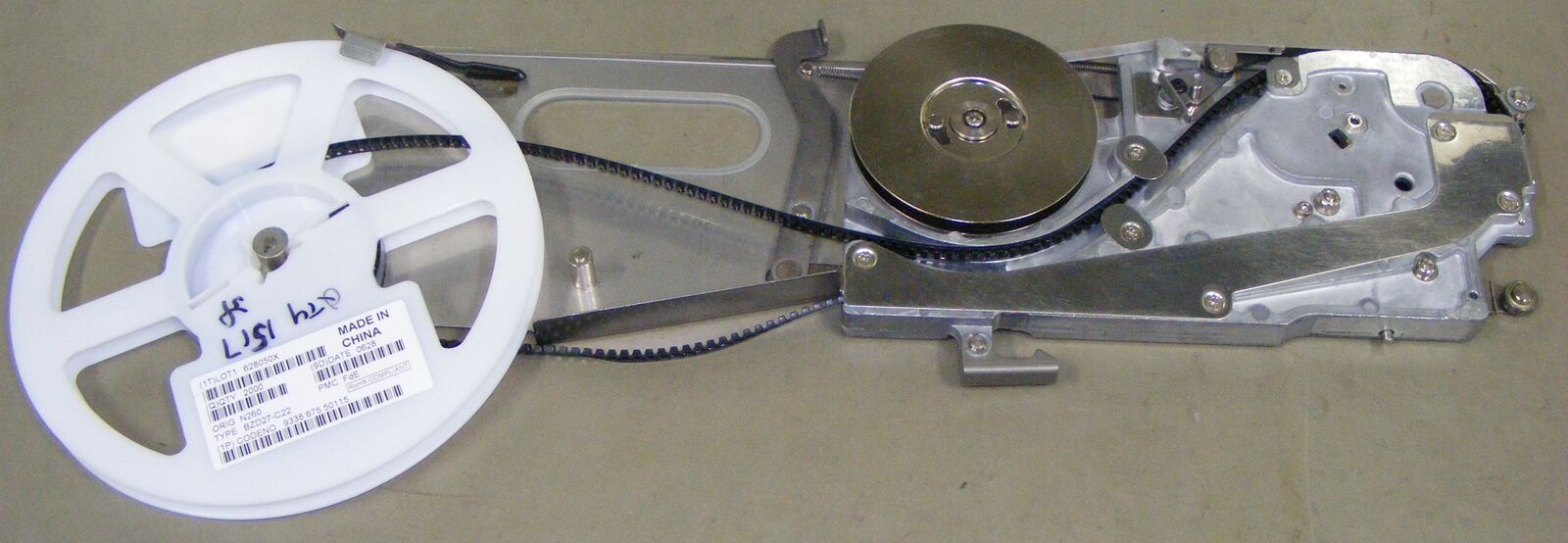

Surface mount placement
Siemens Siplace machines place everything from 0402 passives to micro BGA and fine-pitch ICs at speed.
Wave & through-hole

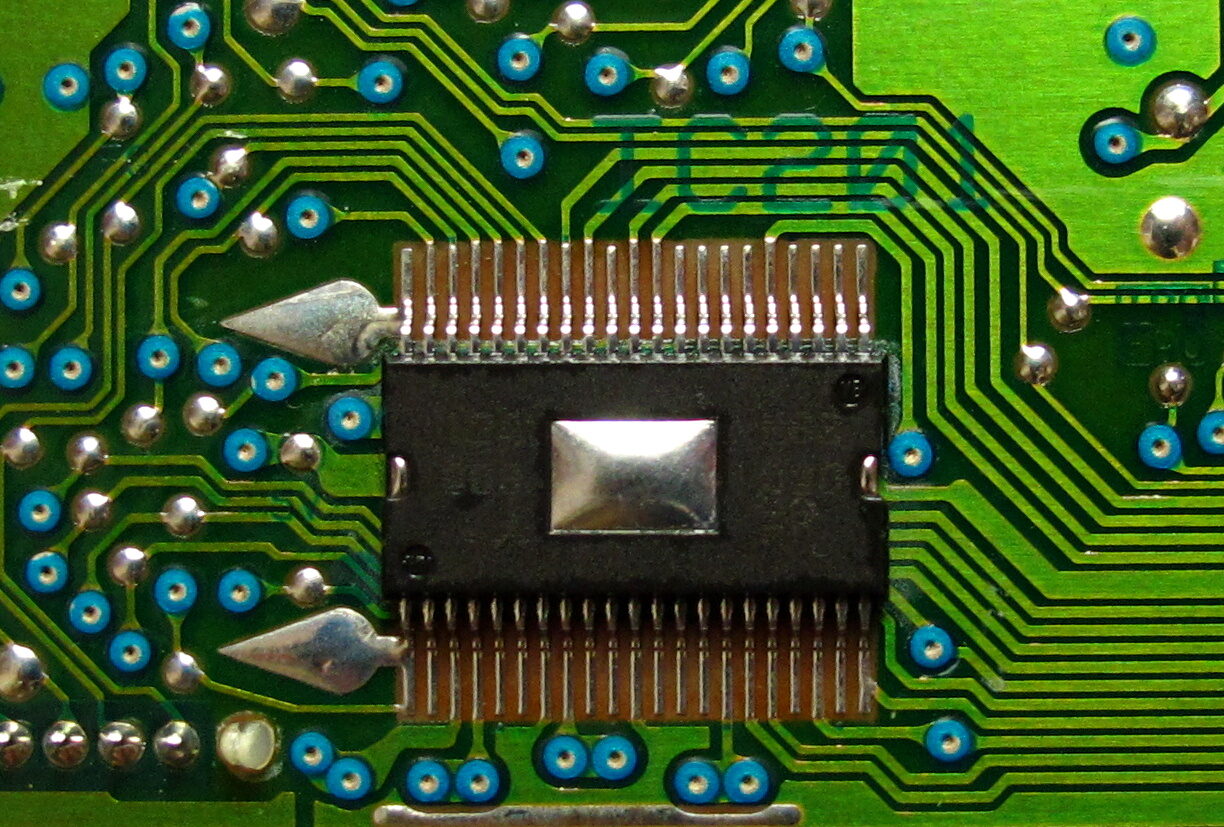

A Seho wave solder machine with pre-heating and automatic fluxing gives repeatable, high-quality joints on single-sided and mixed boards.
Automatic optical inspection
AOI checks component placement and solder joints together without slowing production.
Box build & test
Electro-mechanical assembly, full system build, test and shipping direct to your end customer.
Inspected jointsQuality control
Defects caught before they ship.
Our VI AOI system inspects all SMT placement, checking component body position and solder joints at the same time.
It detects:
- Missing components
- Misplacement
- Tombstoning
- Polarity errors
- Coplanarity
- Solder paste excess
- Solder bridging
- Lifted legs
Our quality control process covers every manufacturing stage, and third-party products too, so our standards are met throughout.
Equipment
On the factory floor.
Modern, maintained equipment run by engineers who know it inside out.
| Process | Capability |
|---|---|
| SMT placement | 10 Siemens Siplace machines in 2 lines, up to 160,000 components per hour |
| Component range | 0402, QFP, QFN, micro BGA and fine pitch |
| Wave soldering | Seho wave solder with pre-heating and automatic fluxing |
| Inspection | VI AOI (automatic optical inspection) on all SMT placement |
| Technologies | Surface mount, through-hole and mixed technology |
| Quality system | ISO 9001:2015 |
Turnkey service
From design to your customer’s door.
Arista offers a full turnkey service: design, PCBA manufacture, full box build and shipping to the end customer.
Our electronics engineers and design specialists have many years of expertise in the products and services we offer, and our ability to bring in new technologies quickly and effectively is one of our main strengths.
- Electro-mechanical assembly
- Box build and functional test
- In-house injection moulded parts
- Logistics and distribution

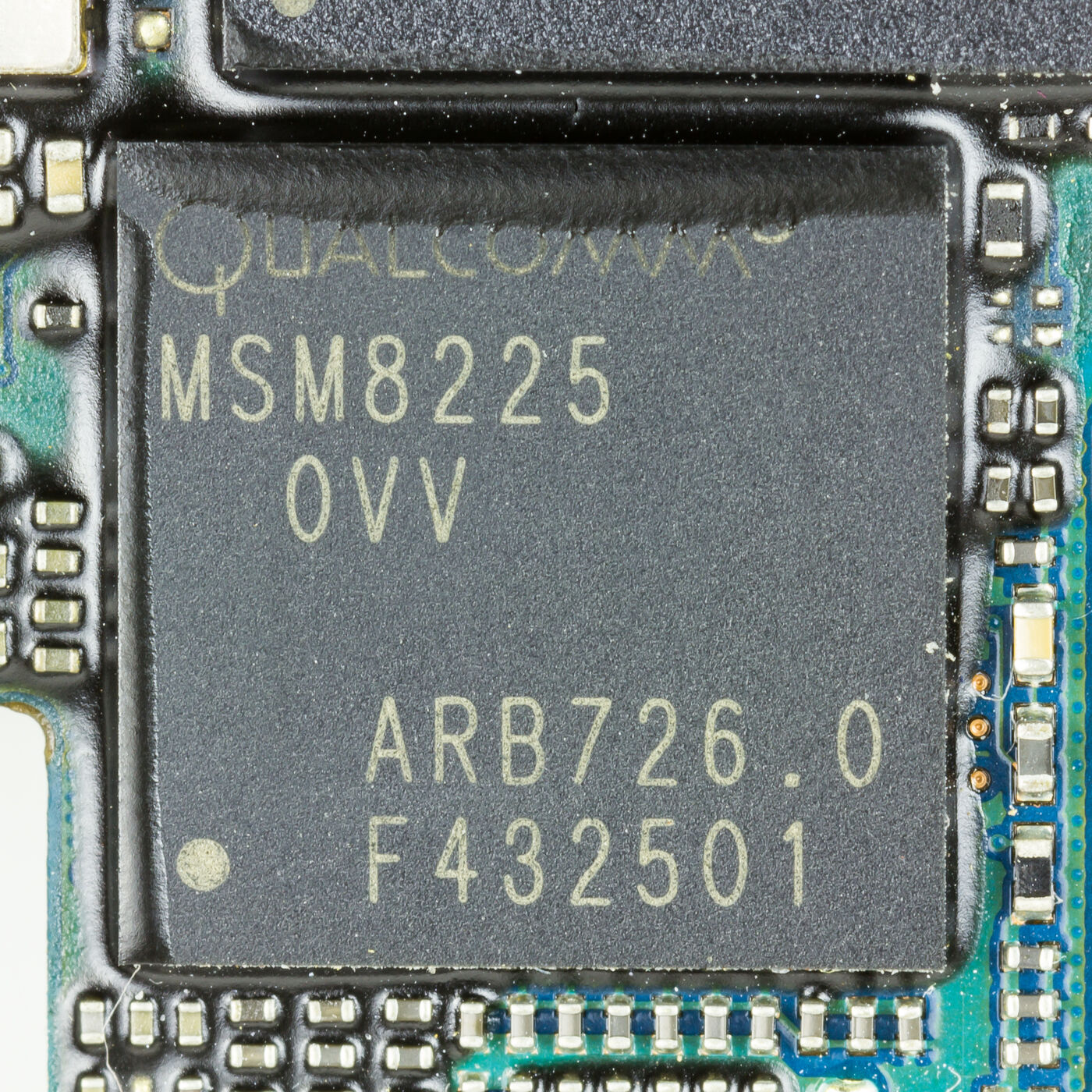

Micro BGAStart a project
Let’s build it here, in the UK.
Send us your BOM, drawings or just an idea. We’ll come back with a tailored quote covering design, assembly, test and delivery.
